D2 LAMP DEUTERIUM LAMP

Structure of electrode General type See-through type
General type See-through type

Nose type (synthetic quartz)
Nosetype Type:
5201, 5211, 5601,
5611, 2201, 2211,
2601, 2611


- The windowis a flat plane, and uniform transmittance can be obtained.
- The window does not become dirty easily, and the light emission does not decrease easily.
Straight type (UV transmission glass)
Straighttype Type:
6201, 6211,6601,
6611, 3201, 3211,
3601, 3611,2601,
2611
- Attachment/detachment is easy, because there is no protrusion.
Back to Top

[Characteristics]
Structure of electrode General use type
Type Wave-
length
(nm)
Heater Material
of window
Brightness Discharge
starting
 voltage
 (V dc)
Discharge
maintaining
voltage
 (V dc)
Rated
current
(mA dc)
Output variation * Average
 life (h)
Voltage
(V dc)
Current
(A dc)
Drift Fluctuation
5201 160 ~400 10 →7 0.8 →0.5 Synthetic
quartz
Standard 350 65-90 300 ±0.5%/h 0.1%p-p 2000
5211 160 ~400 High 400 70-95 300 ±0.5%/h 0.1%p-p 1000
6201 185 ~400 UV
transmission
glass
Standard 350 65-90 300 ±0.5%/h 0.1%p-p 2000
6211 185 ~400 High 400 70-95 300 ±0.5%/h 0.1%p-p 1000
5601 160 ~400 2.5 →1 4 →1.8 Synthetic
quartz
Standard 350 65-90 300 ±0.5%/h 0.1%p-p 2000
5611 160 ~400 High 400 70-95 300 ±0.5%/h 0.1%p-p 1000
6601 185 ~400 UV
transmission
glass
Standard 350 65-90 300 ±0.5%/h 0.1%p-p 2000
6611 185 ~400 High 400 70-95 300 ±0.5%/h 0.1%p-p 1000

Structure of electrode See-through type
Type Wave-
length
(nm)
Heater Material
of window
Brightness Discharge
starting
 voltage
 (V dc)
Discharge
maintaining
voltage
 (V dc)
Rated
current
(mA dc)
Output variation * Average
 life (h)
Voltage
(V dc)
Current
(A dc)
Drift Fluctuation
2201 160 ~400 10 →7 0.8 →0.5 Synthetic
quartz
Standard 350 65-90 300 ±0.5%/h 0.1%p-p 1000
2211 160 ~400 High 400 70-95 300 ±0.5%/h 0.1%p-p 1000
3201 185 ~400 UV
transmission
glass
Standard 350 65-90 300 ±0.5%/h 0.1%p-p 1000
3211 185 ~400 High 400 70-95 300 ±0.5%/h 0.1%p-p 1000
2601 160 ~400 2.5 →1 4 →1.8 Synthetic
quartz
Standard 350 65-90 300 ±0.5%/h 0.1%p-p 1000
2611 160 ~400 High 400 70-95 300 ±0.5%/h 0.1%p-p 1000
3601 185 ~400 UV
transmission
glass
Standard 350 65-90 300 ±0.5%/h 0.1%p-p 1000
3611 185 ~400 High 400 70-95 300 ±0.5%/h 0.1%p-p 1000

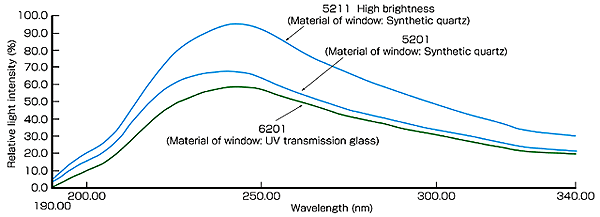

[Spectral characteristics]
Special Characteristics
  • Synthetic quartz: Transmission of@ultraviolet rays is high. Durability against ultraviolet rays is outstanding.
  • UV transmission glass: Since less ozone is generated compared with synthetic quartz, no measures against ozone are necessary.
Back to Top

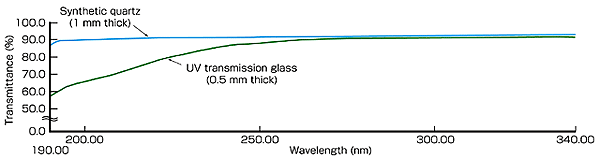

[Transmittance of Materials for Window]
Transmittance of Materials

Guarantee period of a Lamp

A lamp is guaranteed for 1 year form its delivery date.

Cautions on using Lamps

  1. While lit, harmful ultraviolet rays are generated. Do not look at the lamp directly without protective glasses, nor expose your body to the ultraviolet rays.
  2. While lit or just after turning off, the lamp is very hot (higher than 200Ž). Do not touch the lamp directly.
  3. Dirty window of the lamp decreases transmission of the ultraviolet rays. If dirty, wipe the window with a clear cloth moistened with alcohol.
  4. High voltage is applied to start the lamp. Be careful about electric shock hazard.
  5. Do not fix the lamp by holding the nose part because it breaks easily.
