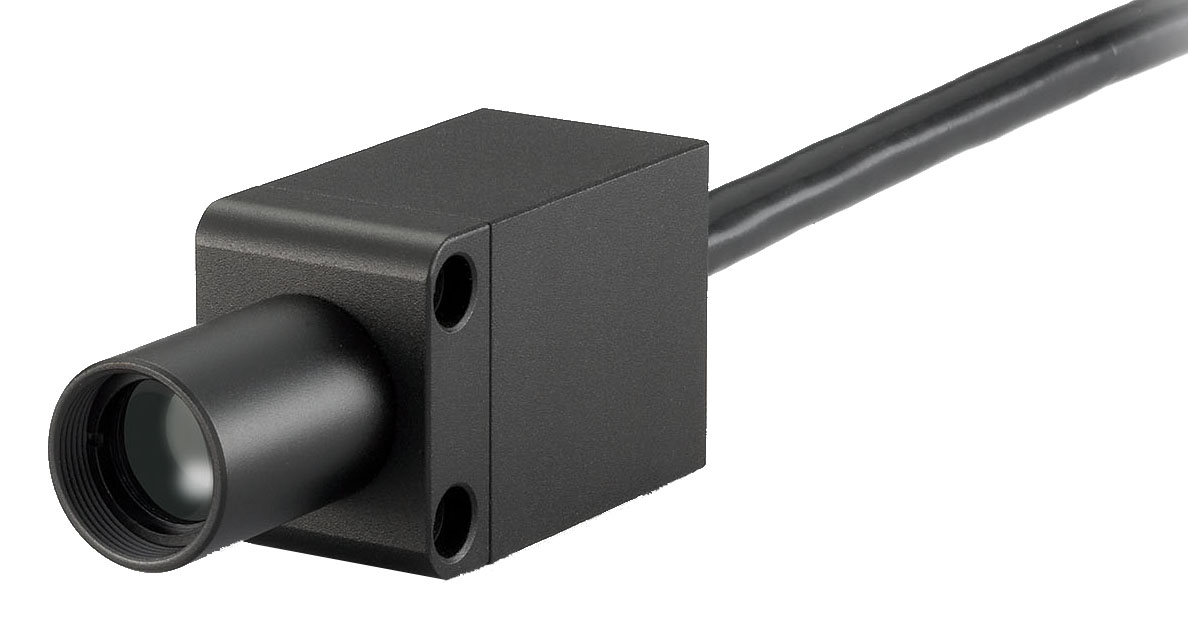

TMHX Series - Online Infrared Thermometer
TMHX CATALOG.pdf (PDF)

TMHX-CN

FEATURES


Very Small and Lightweight, Online Infrared Thermometer

Small and light weight by resin housing.

The setting emissivity is possible at sensor head.

High temperature type has a very wide measurent range.

Temp. range : 0-500(2 types) & 0-1350(1 type.)

High speed response
30msec. (analog output type only).

Low temp. type is available to use as temperature sensor too.

Only thermometer's sensor head measurement temperature is possible.

TMHX-CH
TMHX-CL
TMHX-CS


SPECIFICATIONS OF GENERAL TYPES (Special specs. can be accepted.)

TMHX-CN0500-0035E1.6 0-500°C ø1.6mm 35mm LED(standard) Laser is available. 2-6.8µ Insb
TMHX-CN0500-0070E003 ø3.0mm 70mm
TMHX-CN0500-0120E5.5 ø5.5mm 120mm
TMHX-CH0500-0100B3.5 0-500°C ø3.5mm 100mm 2-6.8µ
TMHX-CH0500-0200B007 ø7.0mm 200mm
TMHX-CL1350-0500B009 0-1350°C ø9.0mm 500mm 3-5.6µ
TMHX-CS0500-0040H0.7 0-500°C ø0.7mm 40mm 5-6.8µ
